(I) Product Overview:

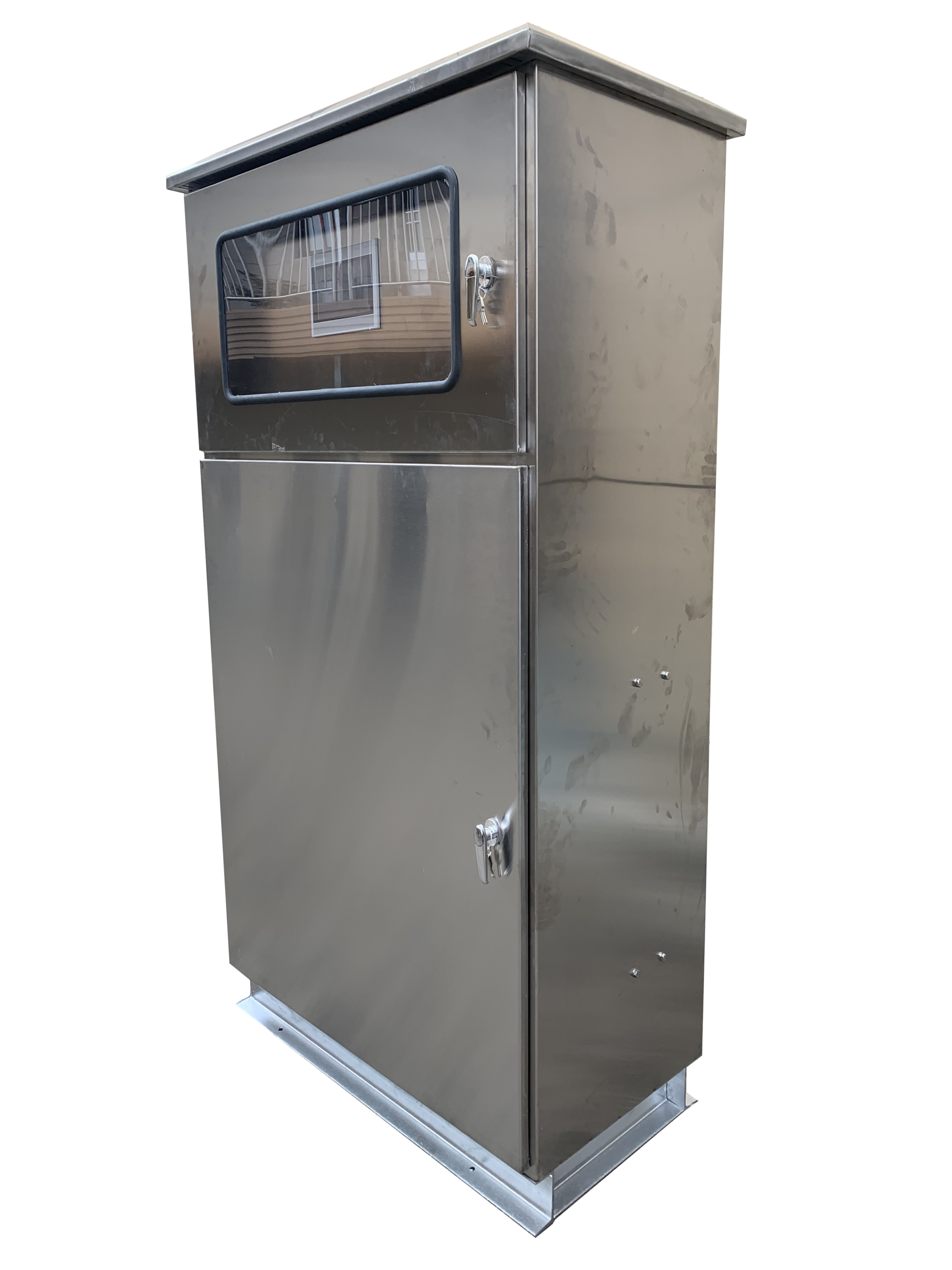

The Smart Above-Ground Integrated Unit is a multifunctional, intelligent rainwater integrated treatment device. This unit addresses the various drawbacks and deficiencies of underground integrated units, such as lack of waterproofing, poor moisture resistance, and difficult maintenance. It not only enables 24/7 uninterrupted rainwater filtration and disinfection but also offers fully automated and intelligent control. It integrates the rainwater control system with the advanced purification system into one unit, featuring simple and quick installation. The built-in control system operates intelligently whether rainwater is abundant or scarce, adapting to various working environments. Whether for single or multiple storage tanks, this device can flexibly meet the requirements.

(II) Main Features:

a. Integrates a complete PLC control system, precision filtration system, disinfection system, equipment compartment, etc. The entire unit is designed for weather resistance with an IP54 waterproof rating. It offers comprehensive functions, excellent performance, and is simple and quick to install.

b. Wide range of filtration applications, flexible use, and multiple installation methods. After integration, it occupies minimal space, requires no equipment room, significantly reducing civil engineering work, lowering construction costs, and shortening the project timeline.

c. High Resistance:​ Constructed from SS304 material, sturdy and durable.

d. Stability:​ Ground-fixed system prevents any movement or floating.

e. Security:​ Reinforced locks and hinges.

f. Appearance:​ Design and colors blend with the environment.

g. Versatility:​ Fully pre-assembled filtration-pump-valve unit, compatible with various additional functions.

(III) Precision Filtration System:

The above-ground integrated unit employs a precision filtration system, using fine filter screens to eliminate microscopic pollutants from the water. The filtration accuracy reaches 50-150 µm. The filtration system housing is made of carbon steel, making the system more robust.

(IV) Disinfection System:

The disinfection system utilizes UV (ultraviolet) disinfection, which is environmentally friendly, durable, requires no chemical dosing, and provides long-lasting sterilization.

(V) Backwash System:

The unit comes standard with an automatic backwash system. When excessive impurities in the filtration system cause high pressure, the system automatically initiates backwashing.

(VI) Intelligent Water Replenishment System:

The water replenishment system is controlled by the rainwater control system, with the replenishment device built into the integrated unit. When the water level in the storage tank falls below the replenishment level, the replenishment system activates to refill the tank.
