How the Smart Ground-Level Integrated Unit is Reshaping the Rules of Rainwater Reuse
In the construction and operation of rainwater harvesting and reuse systems, a persistent challenge for owners, designers, and maintenance personnel is: Where should the core treatment equipment be placed?
The traditional approach typically involves building underground equipment rooms or directly using buried integrated units. The former means additional civil costs, complex waterproofing designs, and limited maintenance access. The latter faces long-term risks of waterproofing failure, moisture corrosion, andthat feels like “opening a blind box.” When equipment fails, maintenance work becomes a major ordeal.
Is there a solution that balances system integrity, installation convenience, operational economy, and long-term reliability? Shanghai Ledo Industrial’s answer is: The Smart Ground-Level Integrated Unit. This is more than just a piece of equipment; it’s a “Ground-Level Smart Water Treatment Workstation” fully integrated at the factory.
I. Ending the Pain Point: Why Bring Equipment from “Underground” to “Above Ground”?
The fundamental problem with buried equipment is that it contradicts the inherent nature of electrical equipment and machinery—they fear moisture, fear water, and require maintenance. The design philosophy of the Smart Ground-Level Integrated Unit takes the opposite approach:

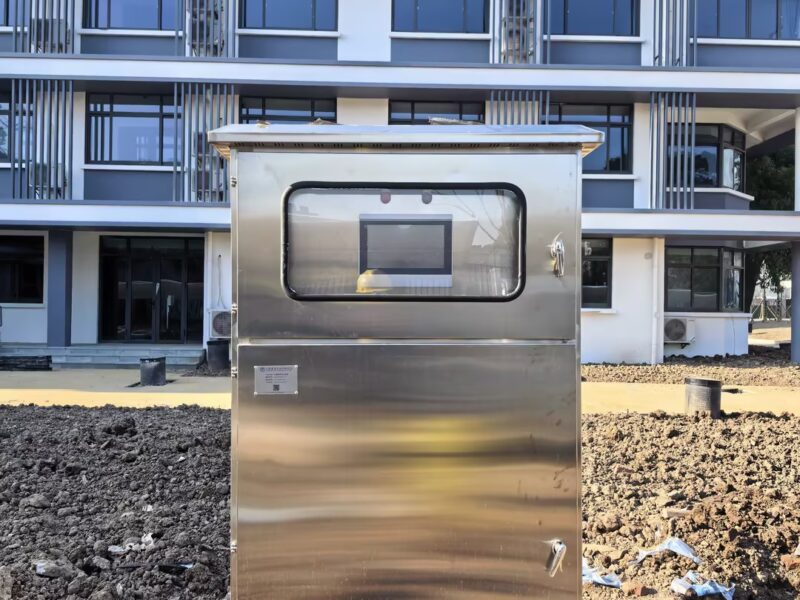

Eliminates Moisture Corrosion: The entire unit is constructed from SS304 stainless steel with a high IP54 protection rating, impervious to sun and rain. It physically prevents from damaging control systems and electrical components, doubling equipment lifespan.
Maintenance Within Easy Reach: All components—PLC control cabinet, filters, pumps, UV disinfection units—are integrated within the above-ground enclosure. Open the door for inspection, maintenance, or replacement, transforming from “emergency rescue” to “routine inspection.”
Releases Civil Costs: No need for underground or excavation. The unit arrives on site and can be installed after simple foundation preparation, significantly reducing civil work, shortening project timelines, and directly lowering initial investment.
II. The Intelligent Core: An Integrated “All-in-One Water Manager”
The power of this “ground workstation” lies in its highly integrated intelligent core. It consolidates all core functions of a rainwater reuse system except storage:

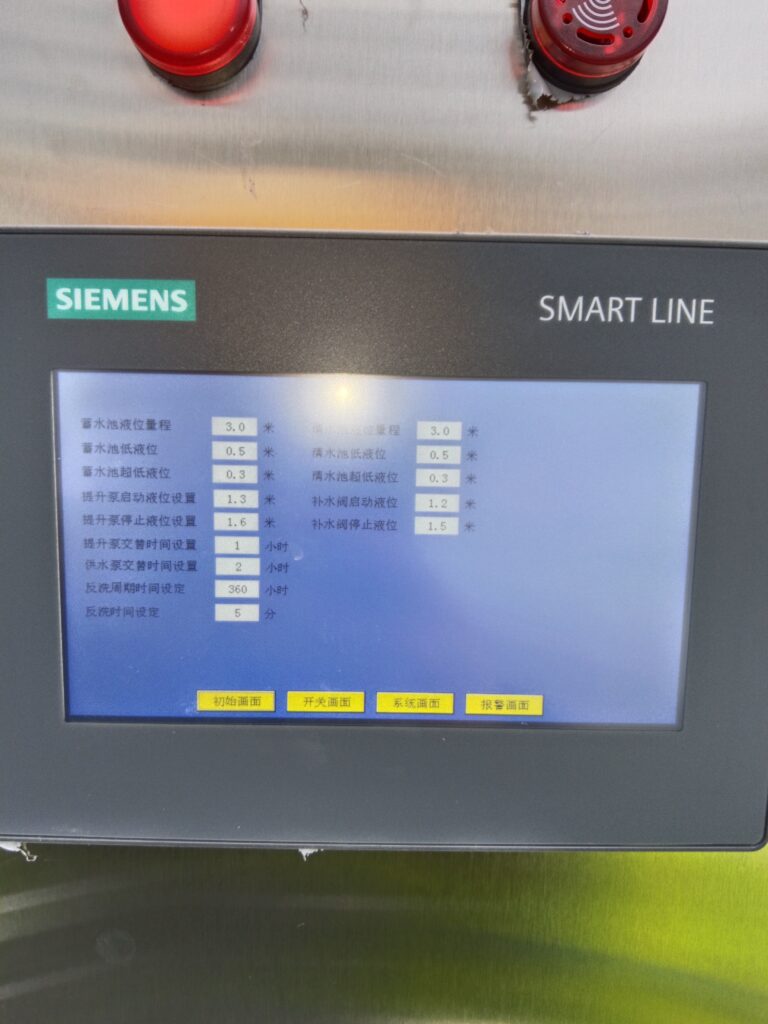

Intelligent Control Center (PLC System): As the brain, it automatically monitors and the entire system 24/7, achieving real-time water level control, automatic pump/valve start/stop, intelligent makeup water during shortages, timed/intermittent water supply—all completely unattended.
Precision Purification Unit:
Self-Cleaning Filtration System: Precision up to 50-150μm, automatically suspended solids and auto-backwashes when pressure differential increases, ensuring lasting filtration efficiency.
UV Disinfection System: Physical UV disinfection instantly kills bacteria and viruses without chemical dosing, no secondary pollution, safe .
Stable Conveyance Module: Built-in pump provides stable water supply based on demand.
III. Ultra-Simple Delivery: From “Box” to “Operation” in Just Three Steps
A complex system, yet offering an exceptionally simple delivery experience. This is another aspect of the Smart Ground-Level Integrated Unit:

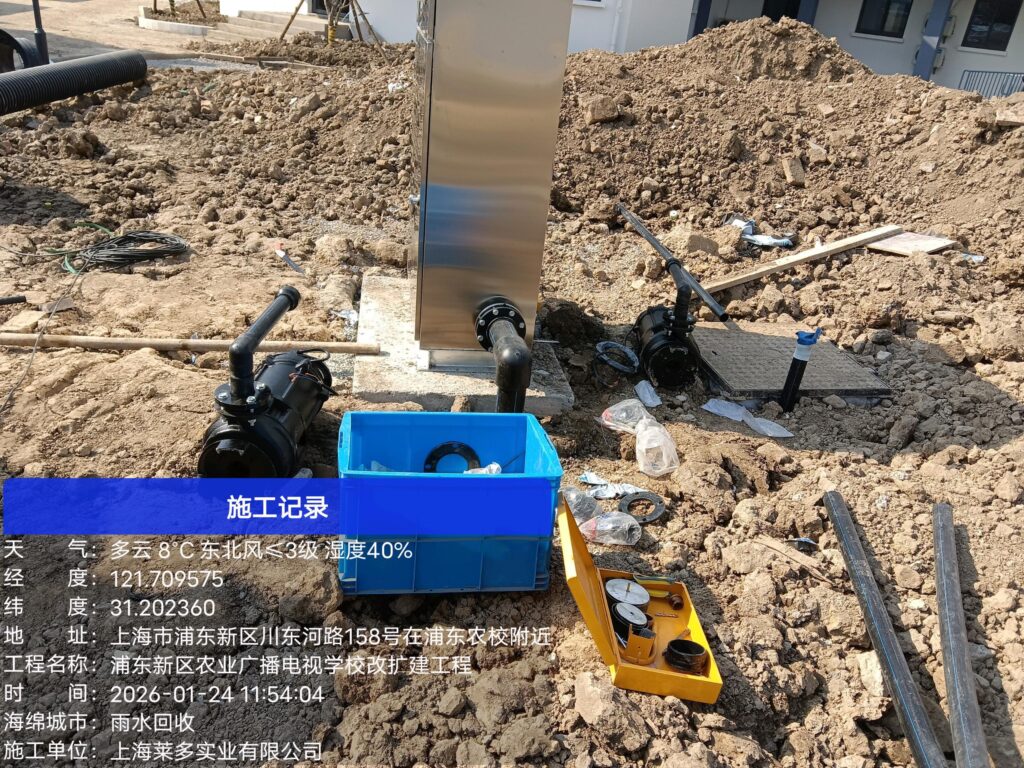

Positioning: Place the unit on a prepared simple foundation.
Pipe Connection: Connect the inlet from the rainwater storage tank and the outlet to the clean water tank or usage points.
Power Connection: Connect to main power, and the system begins automatic operation.
This “plug-and-play” model compresses on-site installation work and commissioning time by over 80%, enabling rapid project launch.
IV. Wide Adaptability: Flexibly Meeting Diverse Project Needs
The unit’s design project diversity, offering multiple models (flow coverage 5-40m³/h, flexible pump configurations) and easily adapting to:
Single Tank Systems: Directly connects to one storage tank, purifies and disinfects for water supply.
Multi-Tank Systems: Can intelligently multiple storage and clean water tanks for complex water volume.
Space-Constrained Projects: Ideal for renovations or new builds without underground conditions or withground space.
The Smart Ground-Level Integrated Unit represents more than product innovation; it signifies an evolution in future-oriented water system construction and philosophy. It transforms complex, hidden underground engineering into standardized, modular, visible above-groundequipment.
For project owners, it means lower initial investment, fewer risks, and longer asset life. For maintenance personnel, it means liberation from “underground rescue teams” to “ground-level managers.”
Choosing the Smart Ground-Level Integrated Unit means choosing a simpler, smarter, and more reliable path to rainwater resource utilization. When every drop of rain undergoes smart purification above ground, a sustainable water cycle truly gains a solid yet foundation.
