Regulation and storage series

I. Product Overview​

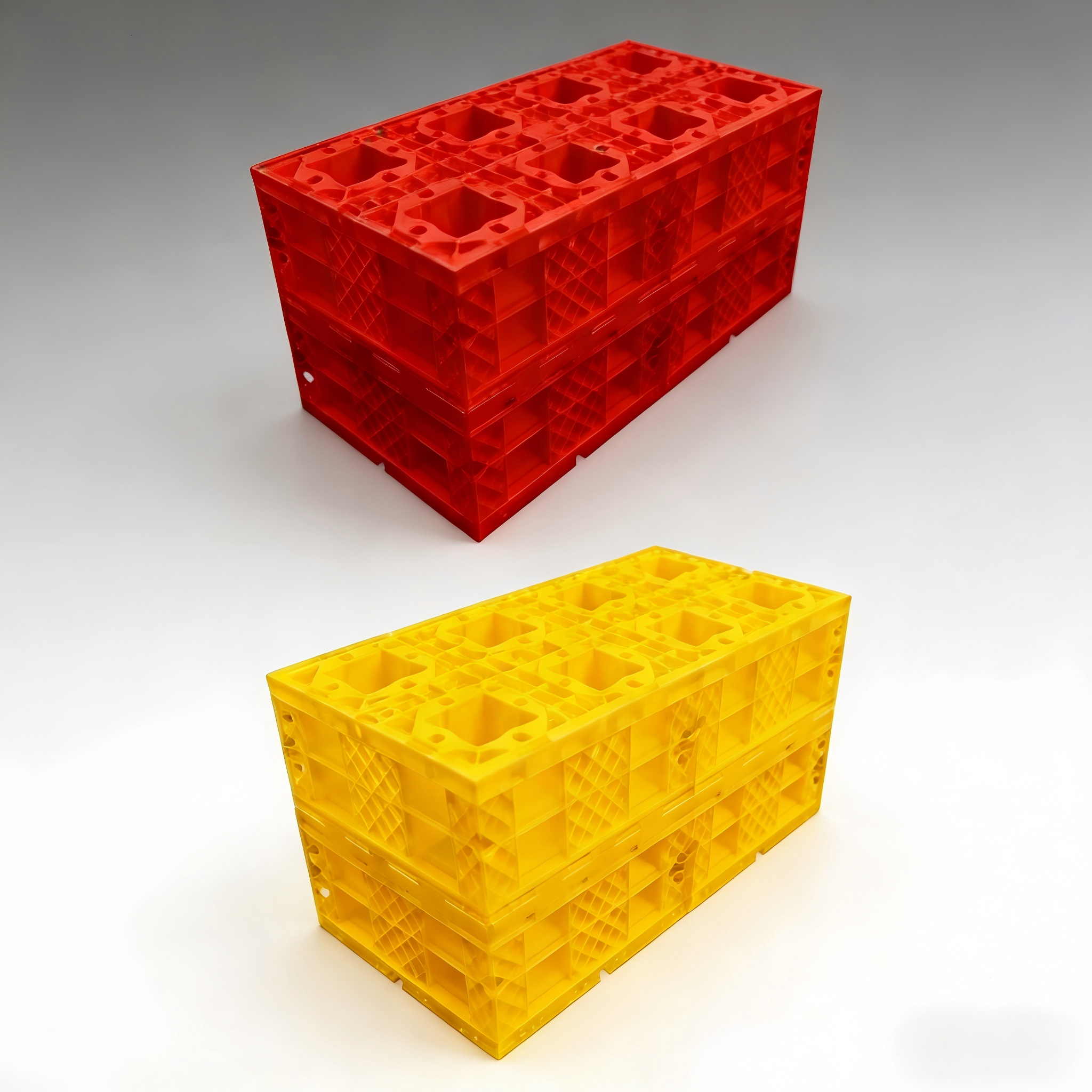

The Lingze Water Storage-Release Module is a new-generation safety-oriented assembled water storage and slow-release sponge product developed by Laiduo. It transforms traditional rainwater storage product design, which often focuses only on vertical pressure resistance while neglecting lateral pressure resistance. This innovation improves the overall safety factor of the water storage tank by 5 to 10 times. The product is primarily made of new PPB material, infused with special carbon fiber composites during manufacturing.

II. Product Parameters​

• Length: 1200mm
• Width: 600mm
• Weight: 55–80kg
• Void Area: 93–96%
• Unrestricted Flow Rate: 3550 liters/min
• Vertical Compressive Strength: 60–80 tonnes/m²
• Lateral Compressive Strength: 15–55 tonnes/m²
• Service Temperature: -30℃ to +120℃
• Module Material: PPB + CF

III. Key Functions​

Provides comprehensive sponge functionality: infiltration, detention, storage, purification, utilization, and drainage. Incorporates intelligent water-wood-natural clustering technology.

IV. Applications​

Primarily used for peak flow control, rainwater resource utilization, and total runoff volume management.

Application scenarios include: parks, municipal roads, schools, stadiums, hospitals, residential communities, office buildings, airports, and other sponge city projects.
